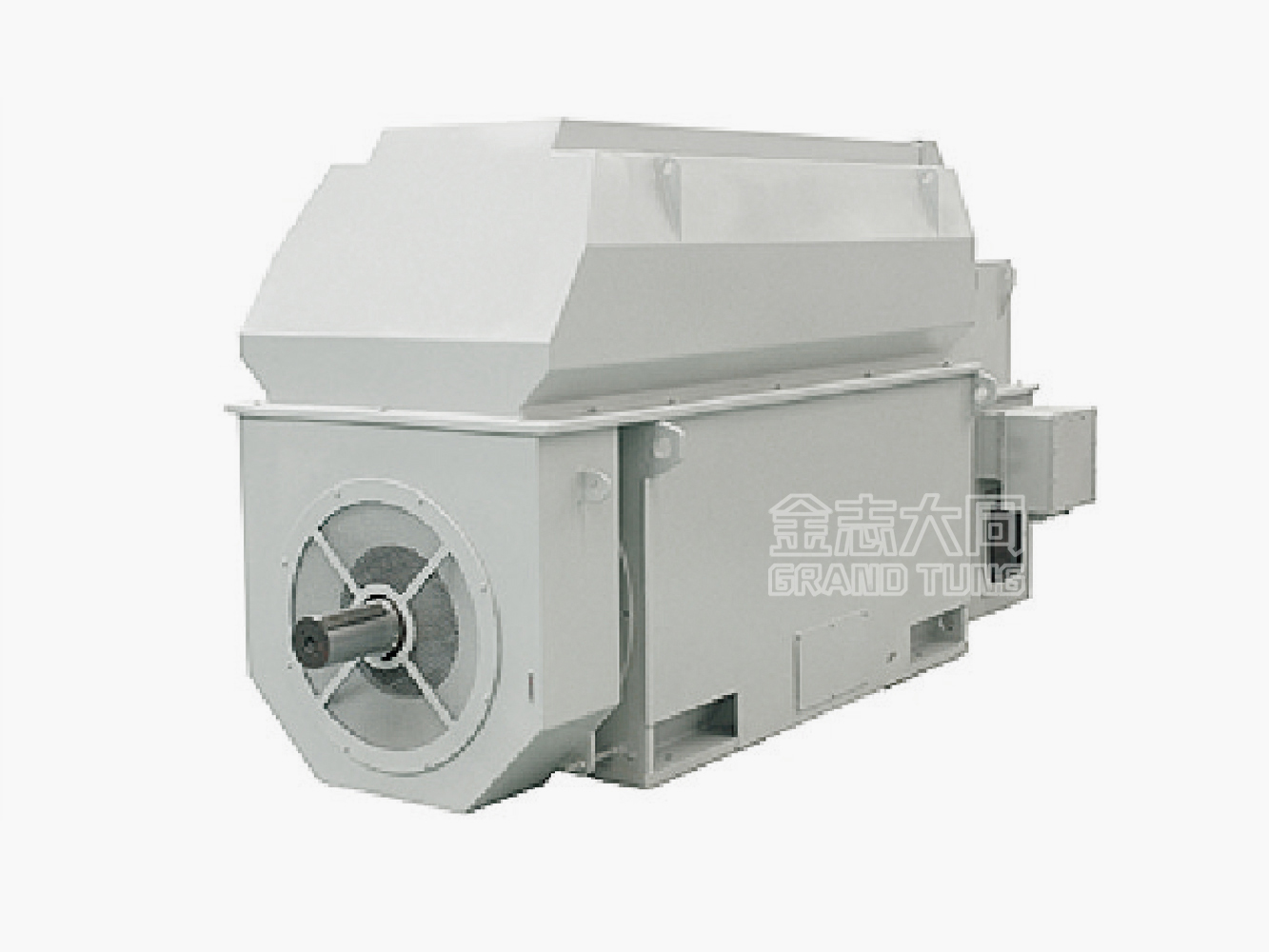

Standard High-Voltage Motor（IP54/IP55）

The design, manufacture and testing of high-pressure squirrel cage induction motors meet the requirements of IEC international standards. High-quality cast iron or steel structure is provided, with excellent performance and beautiful appearance

Power range: 160KW~1800KW;

Frame range: H315~H560;

Protection level: IP55/IP54/IP44;

Cooling method: IC411;

Installation mode: B3/B35/V1;

Working mode: S1;

Power supply conditions: voltage variation rate ±5%, frequency variation rate ±2%, combined voltage and frequency variation rate ±5%;

The motor can provide two-way rotation direction (except 2 poles);

2 pole motor is only used for direct rotation of coupling;

Full voltage starting and stable voltage starting with terminal voltage not less than 85%.

Product advantage

Experienced design process team, to ensure the motor excellent performance and stable manufacturing quality;

The stator adopts VPI vacuum dipping paint to ensure the solidification and stability of the insulation system.

Customers may propose special technical requirements:

Vertical motor with large axial force;

Thermal protection and vibration detector;

Special mounting size and shaft size;

Low vibration and low noise;

PT100 bearing and winding temperature detection;

Special coating;

When ordering, please specify the motor's rated power, synchronous speed, voltage, frequency, installation structure, rotation direction (viewed from the shaft extension end); If you have special requirements, such as non-standard power, voltage, frequency, installation size, altitude and other special environment, high plugging rotation, double shaft extension, water cooling, vertical installation, large shaft return force, please put forward when the product inquiry.

Product application field

It can be used to drive all kinds of general machinery such as machine tools, air compressors, water pumps, fans, transmission belts, mining machinery, metallurgical equipment, etc. No flammable, explosive or corrosive gases.
