VARIO Variators

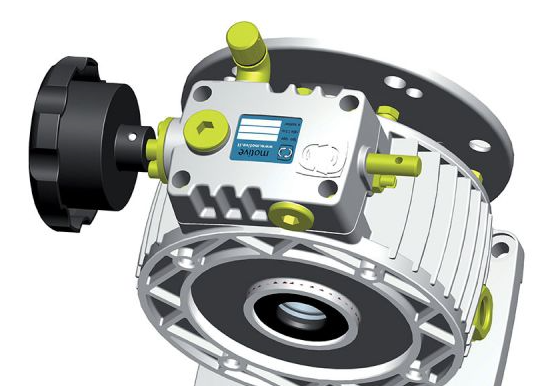

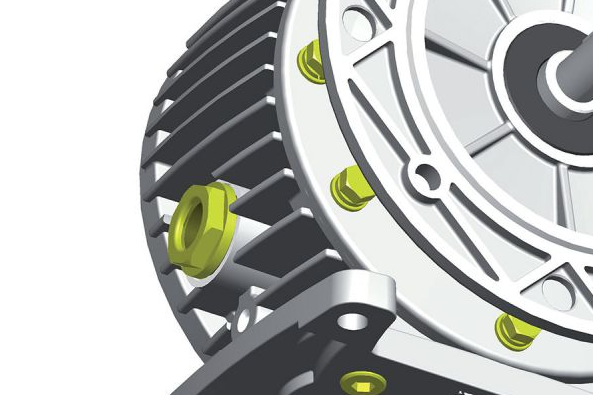

1、Each VARIO is equipped with filler, level and breather plugs to make it suitable for any mounting position.

2、Each VARIO is equipped with filler, level and breather plugs to make it suitable for any mounting position.

3、TC double lip oil seals.

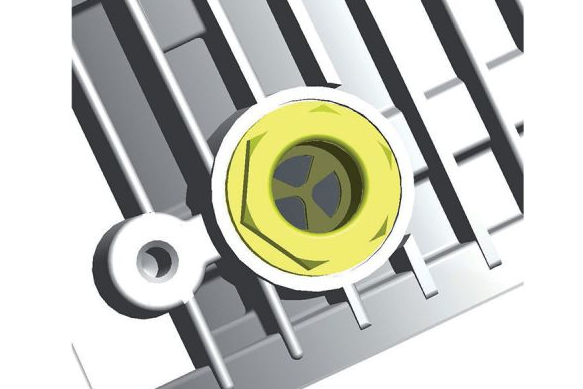

4、A filler plug is magnetic too, in order to maintain clean the lubricant and extend the maintenance intervals.

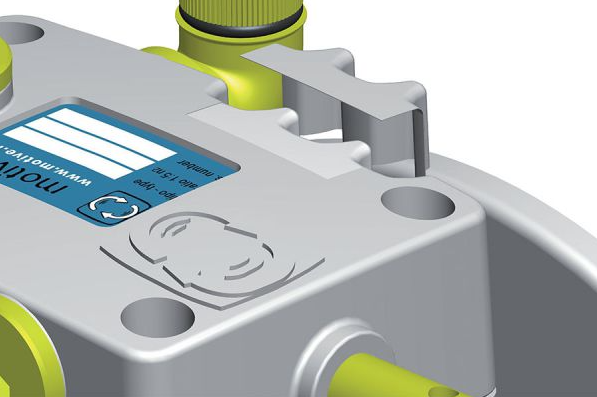

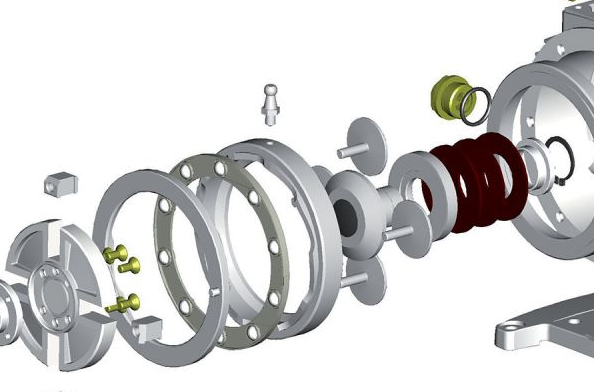

5、The new planetary cone disc variators of the patented series VARIO are built in an aluminium die-casted housing in 3 sizes: small, medium and large, respectively for motors of IEC size 63, 71 and 80.

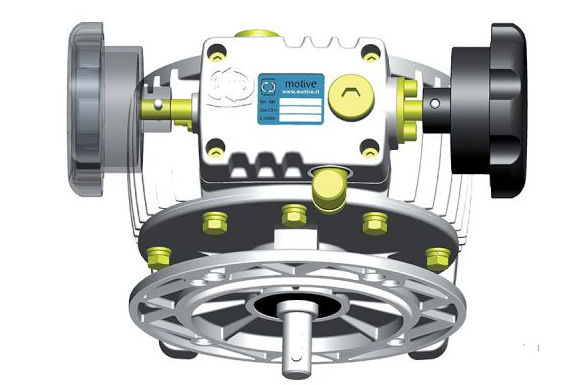

6、VARIO can operate in both directions, input and output shafts rotate in the same direction. Hand wheel can be fitted to both sides of control box for convenient installation.

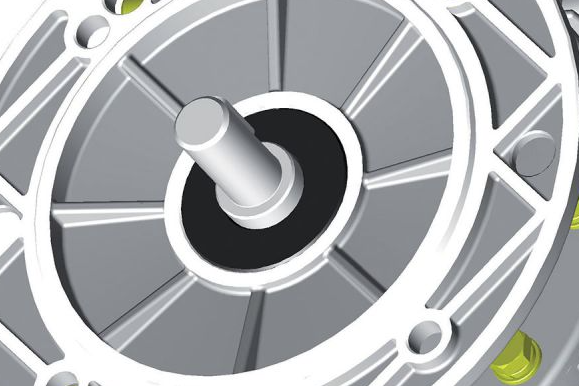

7、The closed input flange is an integral part of VARIO casing, preventing oil leaks possibilities.

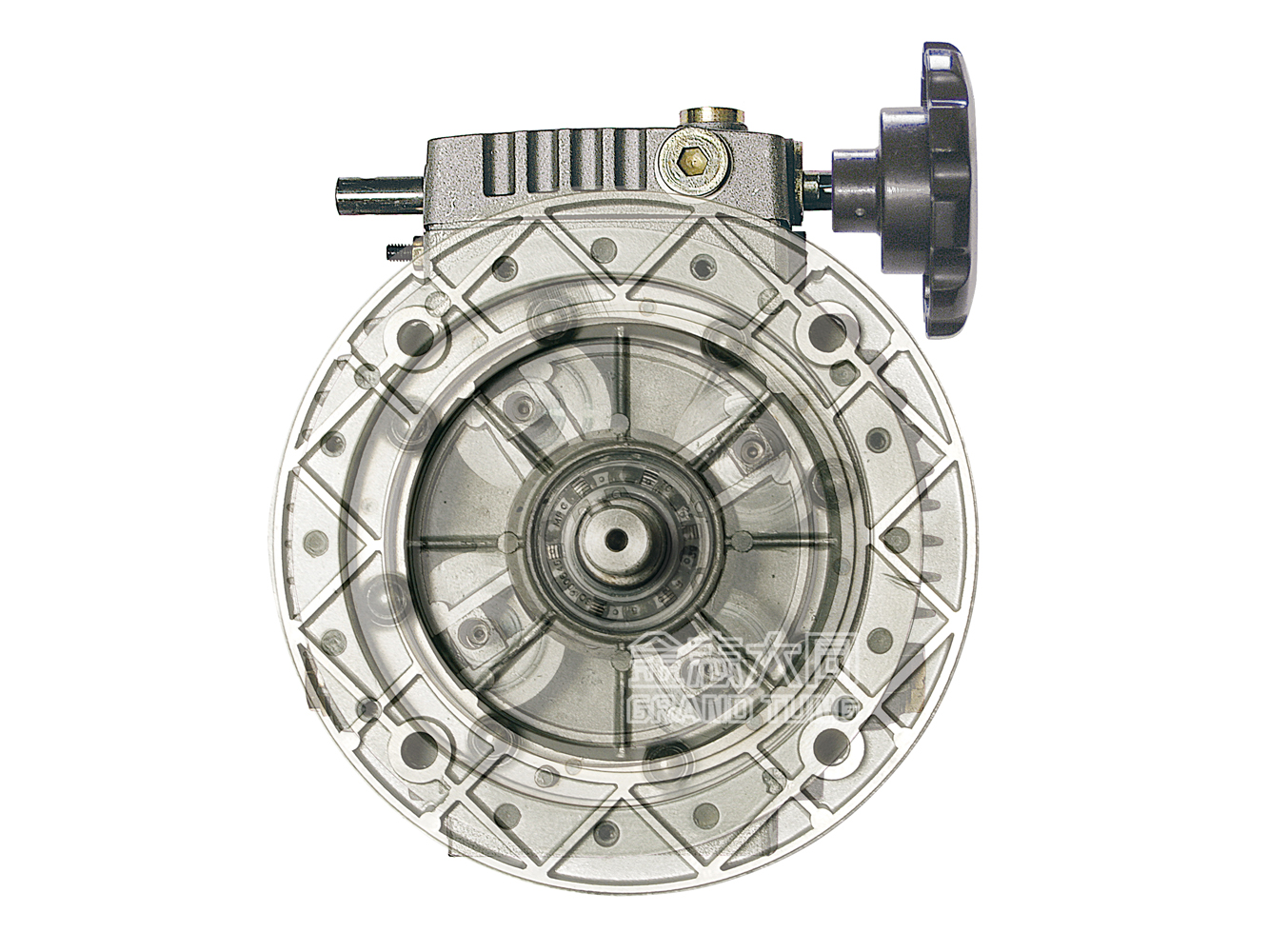

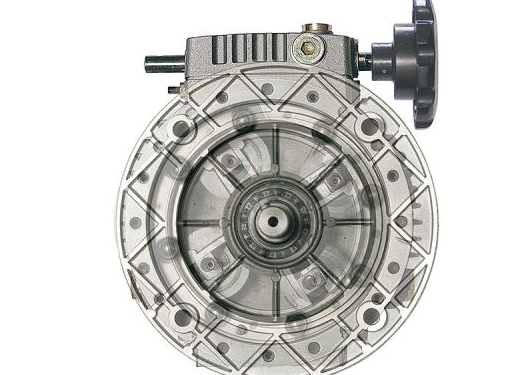

8、The oil bath operation provides high efficiency, low noise, vibration free running.

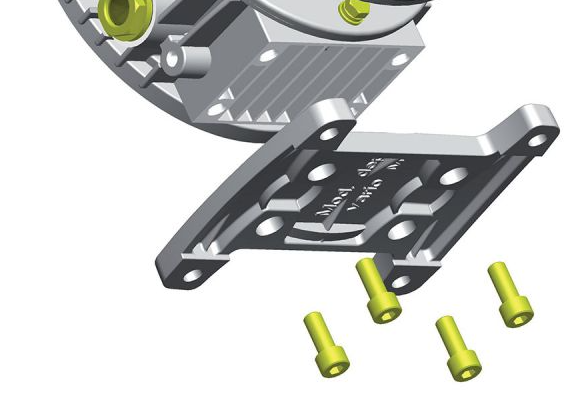

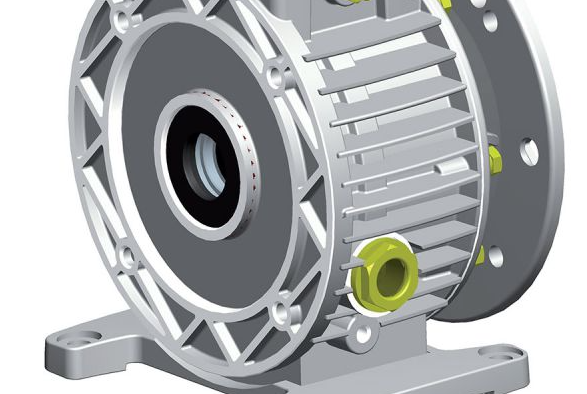

9、The standard unit is including the motor B5 flange connection, but it allows to fix the detachable foot too, reducing stock levels and allowing quick delivery.

10、The housing and flanges are blasted and then painted, to cancel the negative effects of the aluminium porosity and protect VARIO from oxidation.
